Welcome to Blinds on the Net™ Quality Custom Made Shutters

Imported DIY PVC 89mm Shutters - ON SALEImported PVC Supply Only

To see the Blinds on the net PVC Shutter manual (click here)

If you need instructions on how to measure for your blinds, (click here)

Imported 89mm PVC Shutters

6-8 week production but best price!

Price & Size

Width:

mm

Height:

mm

Quick Price:

$ (inc GST)


Mid Rail Height: (?)

mm

Mid Rail Height

1 midrail required for heights more than 1500mm.
2 midrails required for heights more than 2100mm.
Please specify height to middle of midrail.

Second Mid Rail Height:

mm

Available Colours (please select)

Note: If mount type 'hinged' selected hinge colour will be the same as colour selected.

Alpine White
Alpine White
Ivory
Ivory
Vanilla
Vanilla

Additional Information

Quantity:

Mount: (?)

Mounting Method:

Number of Panels:


Frame:

  • L Frame


    L-Frame


  • Z-Frame


  • U-Frame


Panel Layout:

  • L Frame


    Panel Left

  • R Frame


    Panel Right

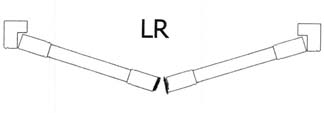

  • L R Frame


    Panels Left & Right

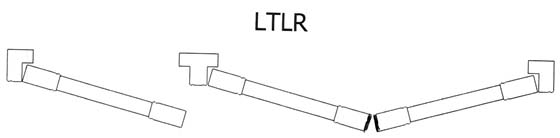

  • LTLR Frame


    Panels LTLR

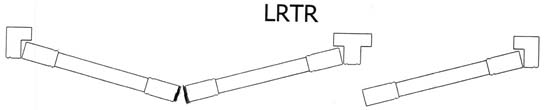

  • LRTR Frame


    Panels LRTR

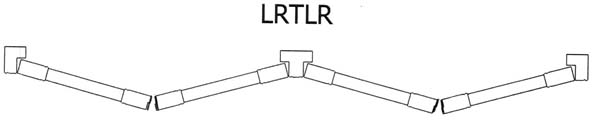

  • LRTLR Frame


    Panels LRTLR

  • LTLRTR Frame


    Panels LTLRTR

Extra Options

Room name:


(Optional)

Full Pricing
Total Price Excluding Delivery: Add to Order

Delivery

Custom Made Shutters

NSW, ACT, VIC, QLD and SA $40 + $15 per panel
NT, WA and TAS $60 + $20 per panel

Australian Custom Made Blinds

Australia wide $30 per order

Ready-Made Blinds, Curtains and Custom Import Blinds

Australia wide $30 per order

Remote Locations

We may ask you to contribute to the additional cost of the freight where freight costs are excessive. Blinds on the Net™ will only ever pass on our cost price for freight.


Product Description

Product Description


Our Imported DIY PVC Shutters can take 6 weeks to manufacture but you wont be dissapointed with the quality.


Our quality PVC shutters look just like timber shutters but have the added benefit of having a rigid aluminium core in the louvre blades, side styles and top and bottom rails which means we can make panels up to 900mm wide!


PVC Shutters have exactly the same Thermal insulation heat transfer properties as Basswood Shutters. This means both products will insulate your home just the same. This has been independantly tested through AWTA Melbourne.


Shutter Speci­cations


Louvre Widths 89mm only. Louvre Shape Elliptical Only. Maximum Panel Height 2500mm


Midrail required 1 midrail required for heights greater than 1500mm


2 midrails required for heights greater than 2100mm


Hinged Panel Maximum Width 900mm


Please note


Minimum top & bottom rails for panels up to 700mm wide is 76mm


Minimum top & bottom rails for panels greater than 900mm is 90mm


U Channel Maximum Panel Width 900mm


Tilt Rod Optons Hidden Only


Louvre Thickness 11mm


Stille Profile Beaded. Stile Width 50mm.  Stile Thickness 27mm. Rail Thickness 19mm





Framing Options


Small L Frame (Beaded) Medium L Frame (beaded) Z Frame


T-Post 90deg Corner Post 45deg Corner Post


Light Block U Channel





Deductions


Recess Mount; Factory will deduct 3mm width and 4mm height.


Face Mount; No deductons will be taken.


Tilt Rod Type Only hidden tilt rod option available. Will be fitted to the rear of the panel on the hinge side unless specified otherwise.


Shutter panels can have split tilt mechanisms split into 2 or 3 sections without need for a midrail. Measurements from the bottom of the panels are required.


Tilt rods will automatically be split at approximately 1000mm. Louvres Only 89mm elliptical shape available. These are available in the solid PVC with an Aluminium Core.


To assist with measuring the following information shows the minimum reveal clearance required by louver. 89mm – 66mm clearance


Hinging Details The factory default matches are as follows: White, Alpine White & Ivory Off White: Vanilla Silver & Stainless Steel hinges are available on request




From $52
Imported DIY PVC 89mm Shutters

A fixed mount uses a
U channel, shown below.
